Rib for Benelli Argo barrel 51cm, caliber 30.06, 300 WM, 308W, 7x64, holes distance 346mm - TONI SYSTEM

Rib for Benelli Argo barrel 51cm, caliber 30.06, 300 WM, 308W, 7x64, holes distance 346mm - TONI SYSTEM

Compatibility:
Benelli Argo - Benelli Argo E - Benelli Argo E Comfortech - Benelli Argo E Comfortech Amazonia Green - Benelli Argo E Comfortech Camo APG - Benelli Argo E EL - Benelli Argo E Pro - Benelli Argo E Wood - Benelli Endurance BE.S.T.

Rib choice guide

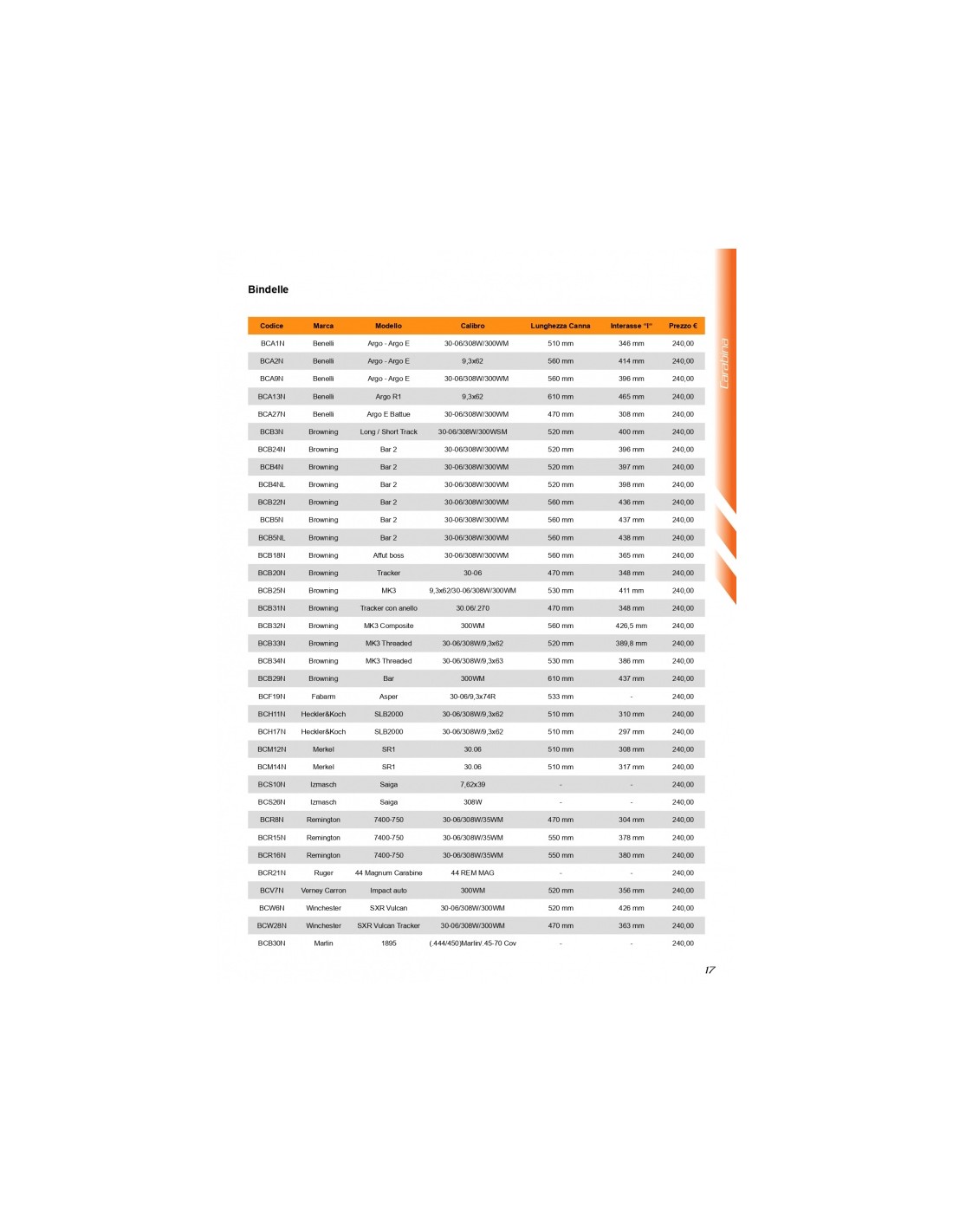

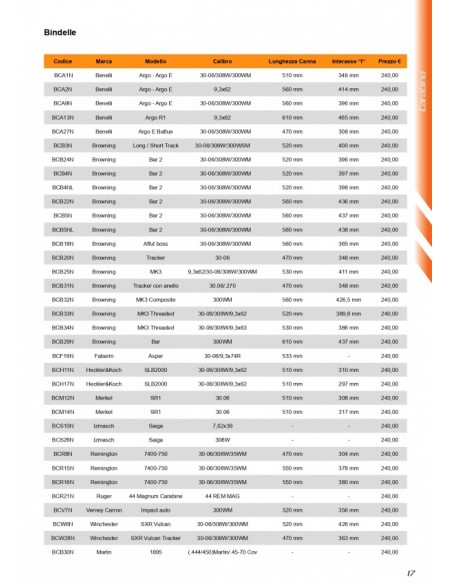

See the Tabella Armi photo


Phase 1:

- Check the brand and model of the weapon

- Check caliber

- Remove the front sight and rear sight

- Measure barrel length



Phase 2:

- Using the information collected, consult the Tabella Armi. If there are more rib models for the same gun then it will be necessary to check the center distance of the holes.

- Once the correct rib model has been identified, you can proceed with the order by communicating the code.



How to check the center distance of the holes:

- take a millimeter line (rigid line, the "meter" is not good) and mark, on it, the measurements of the center distances indicated in the table.

- place the ruler (with the marked measurements) on the first hole in the rear sight, and check if one of the marked measurements matches one of the two holes in the front sight. If none of the measurements are correct, repeat the operation by moving the ruler to the second hole in the notch.
